Product Introduction

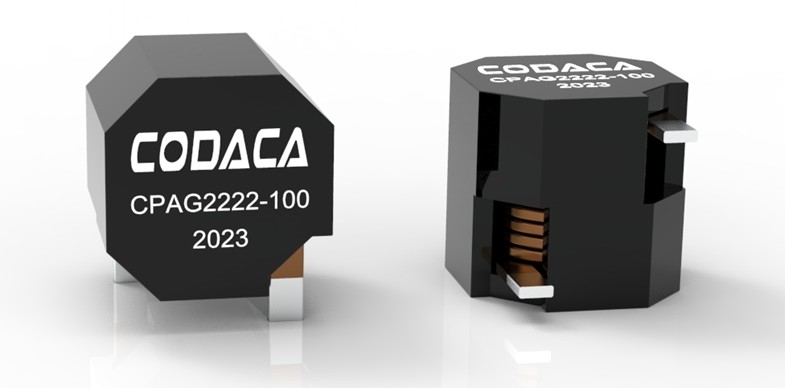

CODACA a leading high current power inductor manufacturer has released new CPAG2222 series of high current power inductors are designed with magnetic powder core technology, providing stable inductance, high saturation current, and low core loss even at high operating temperatures. The magnetic shielded structure can reduce electromagnetic interference(EMI) at high frequencies.

High current up to 113 Amps and low DCR

CPAG2222 series of power inductors offer current ratings up to 113 Amps and very low DCR (0.62 to 2.08 mΩ),which can minimize core loss and reduce temperature rise. Soft saturation is stable over temperature and enables high peak current handling.

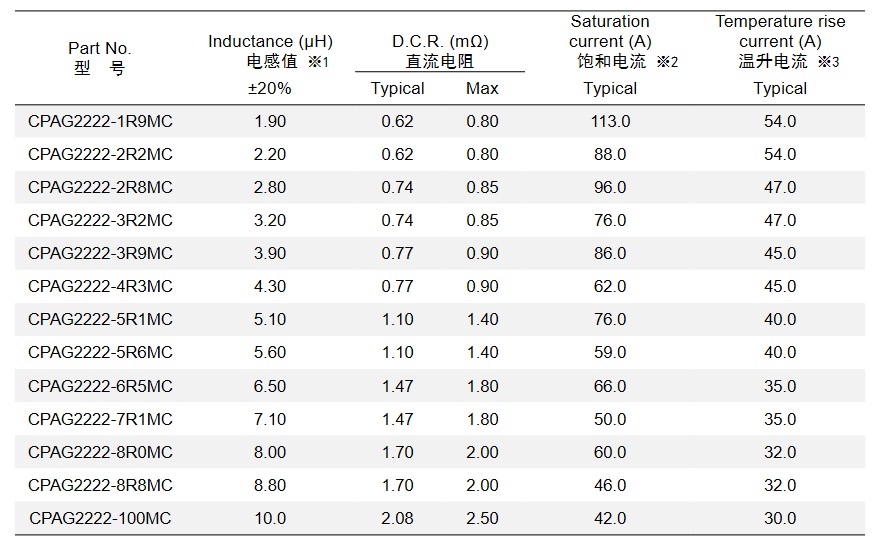

The CPAG2222 Series are available in 13 inductance values from 1.9 µH to 10.0µH.

Saturation Current Curve:

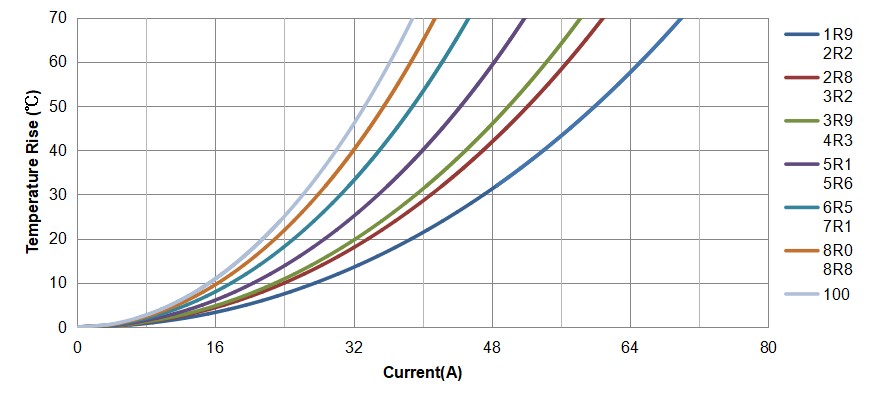

Temperature Rise Current Curve:

Application
Voltage regulator module (VRM), efficient, space saving and energy saving solution of DC/DC converter Including battery detection equipment, high-power LED drive power supply, photovoltaic inverter, medical equipment, industrial power supply, etc.

Operating temperature

-55℃ ~ +150℃ (including coil heating).

Environment requirement

High current power inductors of CPAG2222 series features Halogen-free, RoHS/REACH compliant.
