Codaca's Low Loss and High Saturation Power Inductor CPEX3231A

Date:

2024-11-21

To Improve Your Power Efficiency Effectively

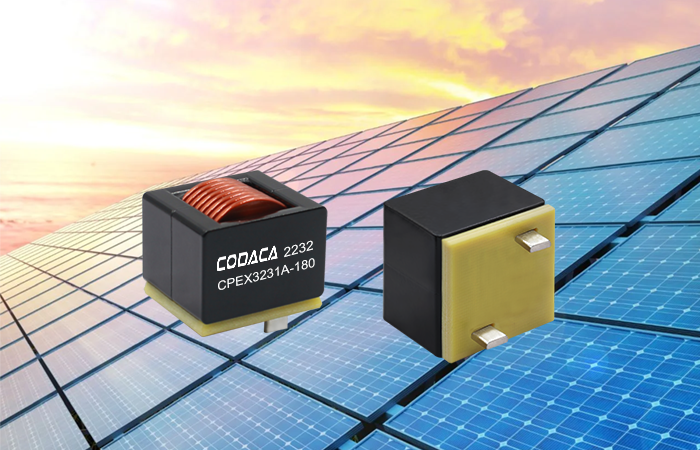

Codaca's Low Loss and High Saturation Power Inductor CPEX3231A

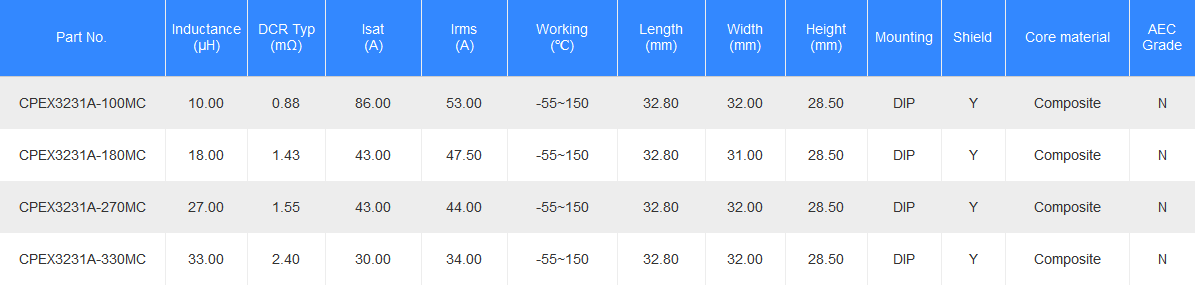

CPEX3231A series high current power inductors with saturation current up to 86.00A and the DCR as low as 0.88mΩ can achieve high power efficiency and no thermal aging problem in high-temperature applications.


power inductors


This fixed inductor is designed with flat wire, and the utilization rate of the magnetic core winding window area is greater than 80%. Therefore, it can reduce the DC resistance of the winding to get lower coil losses and increase the rated current.


Features

◾ Advanced core material with low-loss

◾ Working temperature range: -55°C to +155°C
◾ Flat wire winding achieves extremely low DC resistance
◾ Excellent DC bias capability for handling instantaneous peak currents
◾ Magnetic-shielding structure with a strong resistance to electromagnetic interference


Applications

* DC/DC converters

* High current switches and voltage regulators

* Photovoltaic inverters

* Industrial controls

* Renewable energy


Environment Standard

CPEX3231A series features RoHS, REACH-compliant, Halogen-Free.

Production statue

As with all CODACA parts, CPEX3231A series has been in mass production.

Datasheet Download:Codaca's Low Loss and High Saturation Power Inductor CPEX3231ACPEX3231A.pdf
