Car audio has emerged as a crucial part of enhancing the driving experience beyond just auxiliary equipment. Achieving high-quality digital audio in cars necessitates excellent EMI resistance, minimal distortion, and reduced noise levels.
The VSAD series comprising models such as the VSAD0660, VSAD0880, and VSAD1010. With inductance values ranging from 1.50 to 47.0μH, Isat from 4.20 to 25.0 A, and Irms from 2.40 to 13.0 A, it is tailored to deliver an outstanding audio experience.

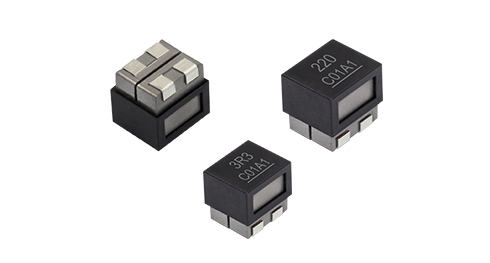

VSAD series digital power amplifier inductor innovative two-in-one shielding combination structure design. Two molding power chokes are assembled in the small package, it efficiently replaces two separate inductors typically satisfy PCB space saving required for noise filtering in Class D audio amplifiers.
This innovative approach not only conserves PCB space and reduces the number of required inductors but also enhances the signal-to-noise ratio, resulting in minimized harmonic distortion and elevated audio experience of superior quality.
VSAD series is designed by low-loss alloy powder, known for its exceptional soft saturation characteristics capable of managing high transient current spikes effectively. This magnetically shielded series exhibits outstanding EMI resistance and minimal cross-talk between inductors due to its low coupling design.
VSAD has been certified by AEC-Q200 for operation temperature range of -55℃~155℃, which means this SMD high current amplifier inductors meet the international passive component standard in automotive industry.

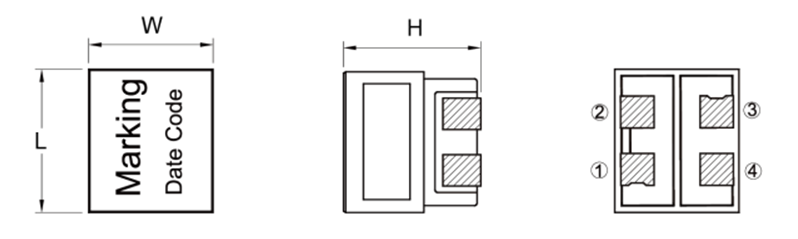

VSAD series appearance and dimension

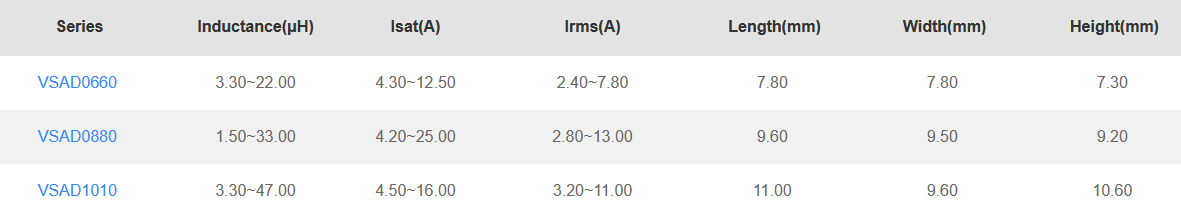

Electrical characteristics:

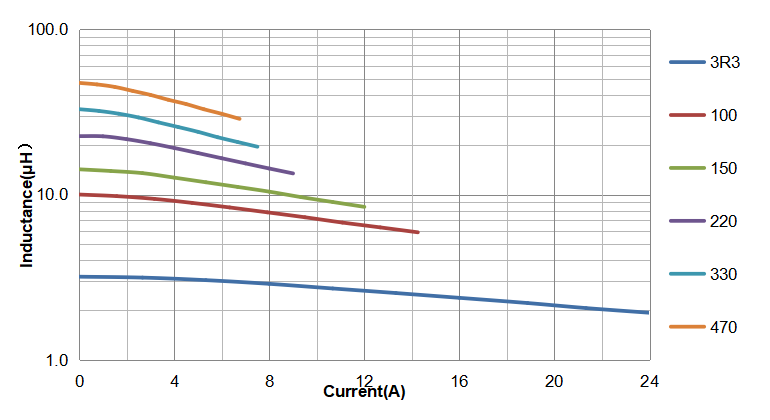

VSAD1010 Saturation current curve

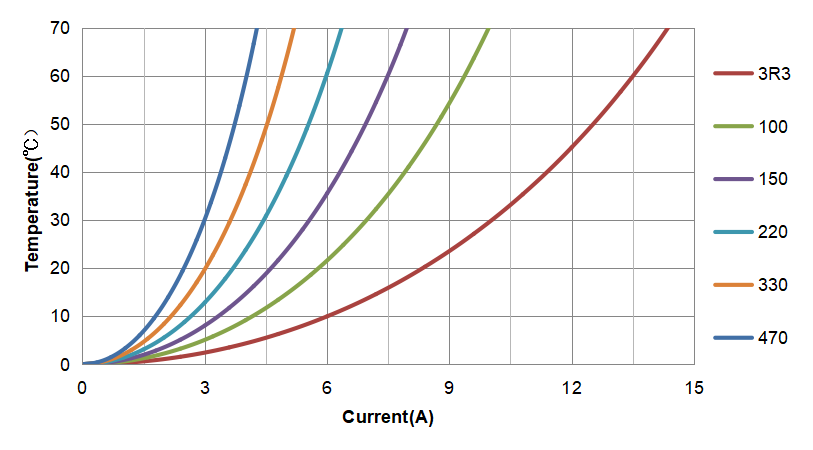

VSAD1010 Temperature Rise Current Curve
Application:
*Digital amplifier
*Car audio
*Home theater
*Multimedia speaker
Environment standard
VSAD SMD inductor features halogen-free, RoHS and REACH compliant.
Product status
VSAD series has been in mass production and lead time is 6~8 weeks.
Datasheet Download：
VSAD0660.pdf
Datasheet Download：VSAD0880.pdf
Datasheet Download：VSAD1010.pdf
