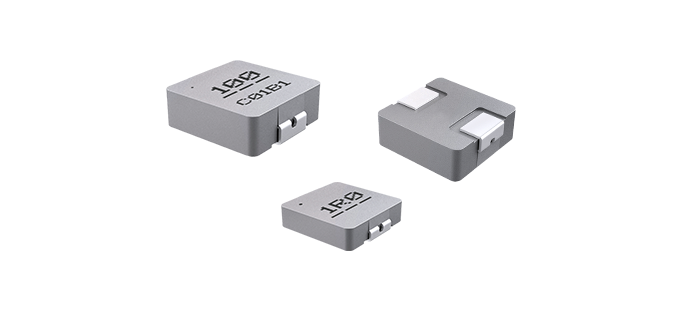

CODACA Electronic has released high temperature molding power choke CSAG series which could operate at the temperature range from -50℃ to 155℃. The CSAG series have 15 sizes in total, from 4*4*2mm to 17*17*7mm. The compact design and low loss in high frequency characteristics make CSAG series are ideal for server power supply, digital amplifier, industrial control, power supply system, LED light and other circuit program designs. In the mean time, shield structure can reduce the EMI risk.
CSAG series inductance range from 0.15 to 120μH, DCR is as low as 0.45mΩ, saturation current is up to 80A, and temperature rise current can be as high as 40A.
AEC-Q200 compliant, high reliability
CSAG series has upgraded and innovated the core materials of inductors, and the temperature resistance level has been greatly improved, with the operating temperature ranging from -55℃ to +155℃, some of the models have passed the AEC-Q200 reliability test.
Suitable for wide frequency environments
CSAG series utilize low loss core materials to maintain good current stability in high frequency environments with low core loss. The frequency range is up to 1000kHz, with an optimum frequency of 800kHz.
Small size，Save PCB space
CSAG series low profile and lightweight design save PCB space and is suitable for high-density mounting.

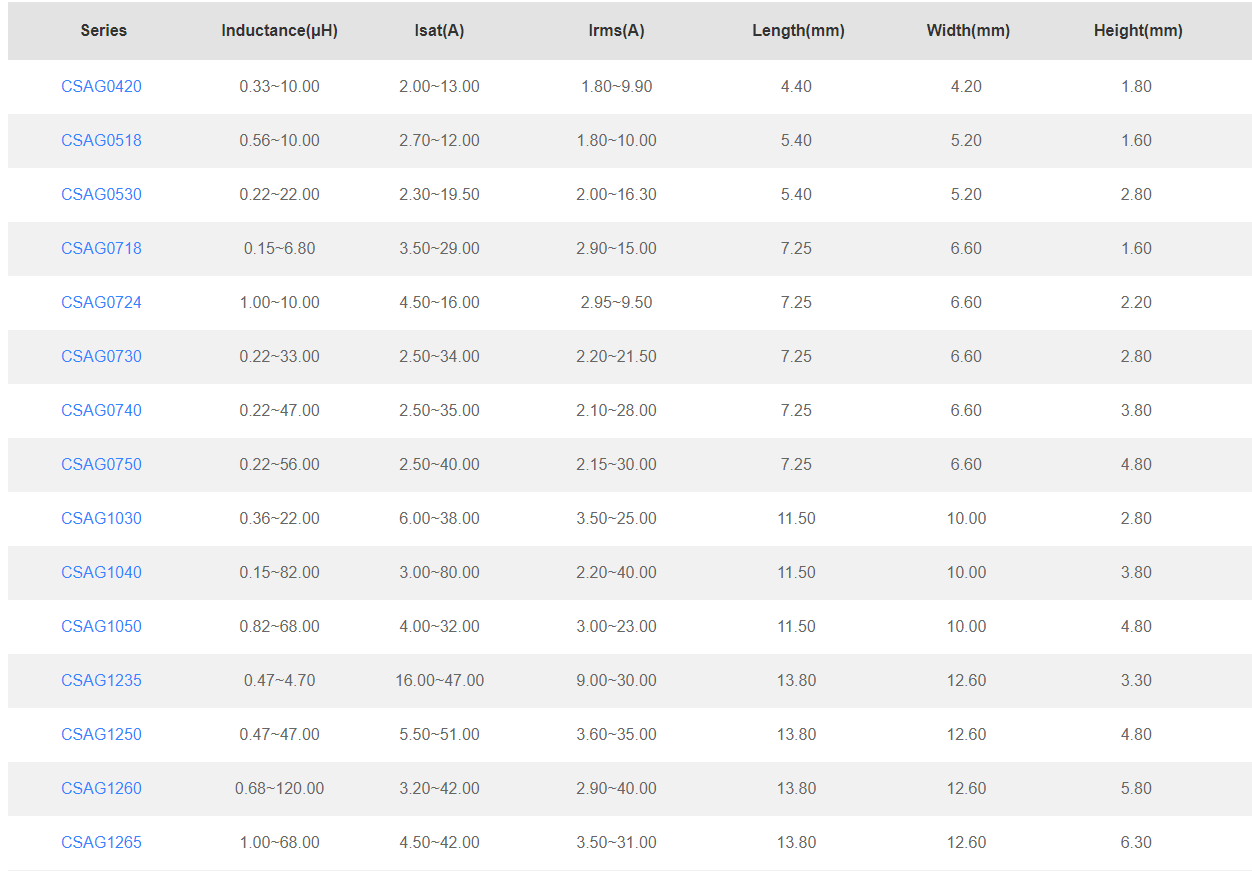

Specifications
Environmental Protection Standard
The products comply with RoHS, REACH and halogen-free.
Production Status
As with all CODACA parts, CSAG series inductor has been in mass production and samples are available to clients after inquiry.
