Nov 15th, 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer, has launched a new type of rectangle molding power choke: CSAB107050/CSAB128050 series. With the lightweight design, the series are ideal for high-density mounting applications and saves PCB space.
Magnetic shielded structure to reduce EMI
The CSAB107050/CSAB128050 series are die-casted by low-loss alloy powder with features of low impedance and small parasitic capacitance.The magnetic shielded structure results in excellent resistance to reduce electromagnetic interference(EMI) and to minimizes audible buzzing.
Oval coil brings higher saturation current
The CSAB107050/CSAB128050 series of molding power chokes are with the oval coil, the total effective rod area of the coil is bigger, therefore, the saturation current is higher than the same sized square molding power choke. The operating temperature ranges from -40℃ to +125℃(Including the coil’s temperature rise).
Part No. | L | DCR | Irms(A) | Isat(A) | Length | Width | Height |
(μH)±20% | (mΩ) | Typical | Typical | (mm) | (mm) | (mm) |

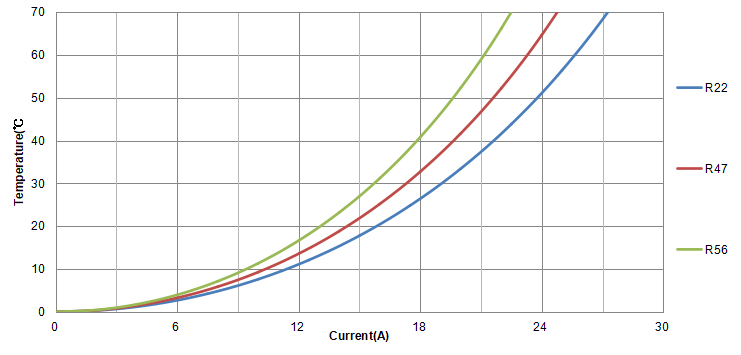

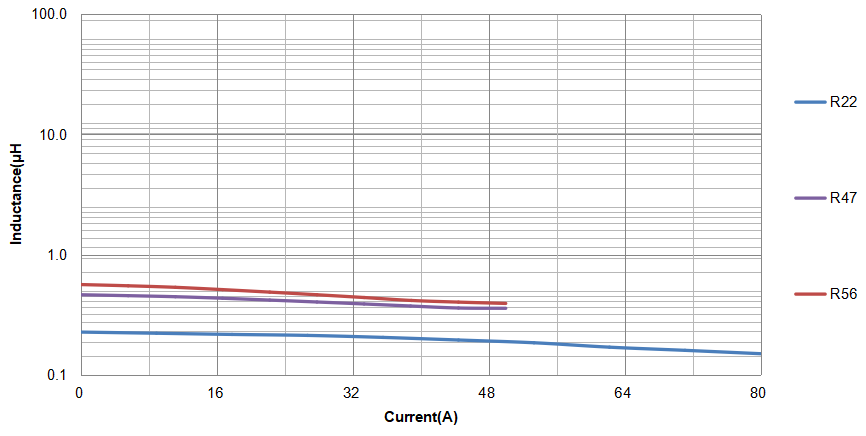

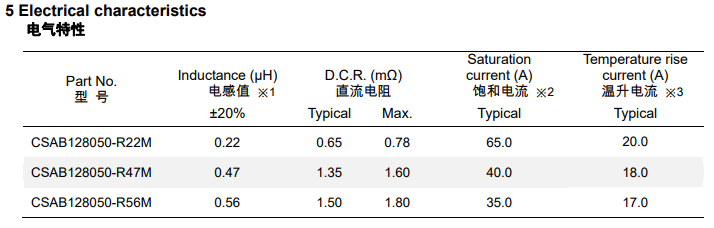

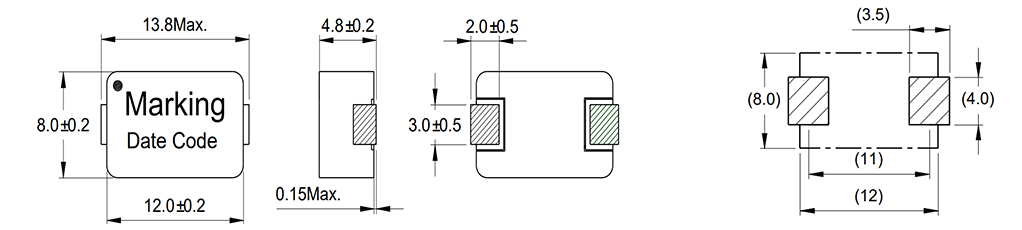

CSAB128050-R22M | 0.22 | 0.65 | 20.00 | 65.00 | 13.80 | 8.00 | 4.80 |
CSAB128050-R47M | 0.47 | 1.35 | 18.00 | 40.00 | 13.80 | 8.00 | 4.80 |
CSAB128050-R56M | 0.56 | 1.50 | 17.00 | 35.00 | 13.80 | 8.00 | 4.80 |
Part No. | L | DCR | Irms(A) | Isat(A) | Length | Width | Height |
(μH)±20% | (mΩ) | Typical | Typical | (mm) | (mm) | (mm) |

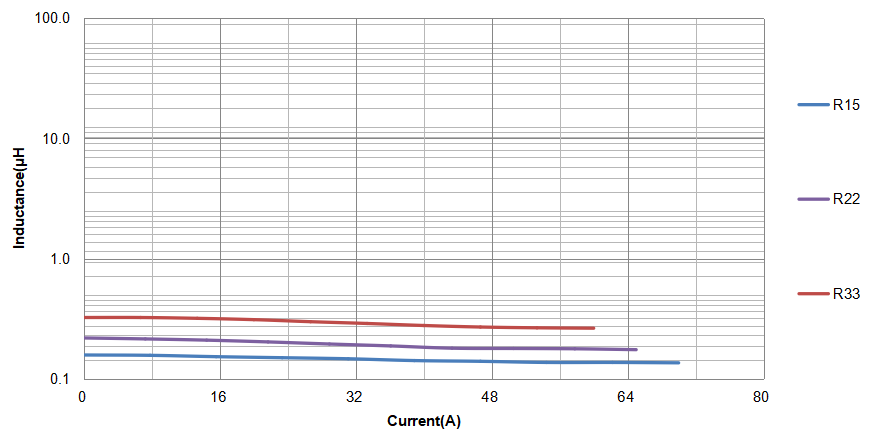

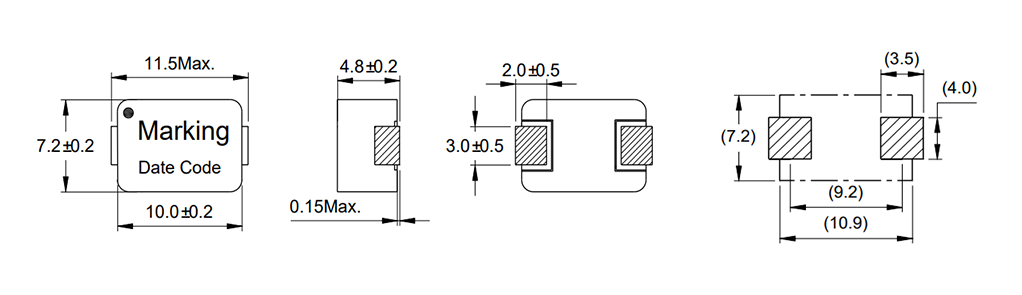

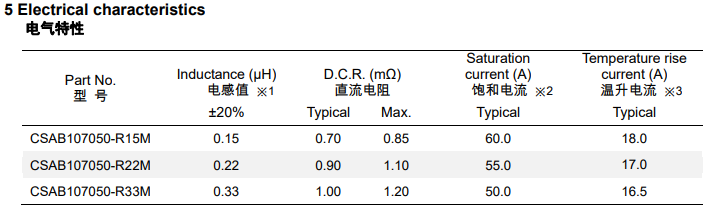

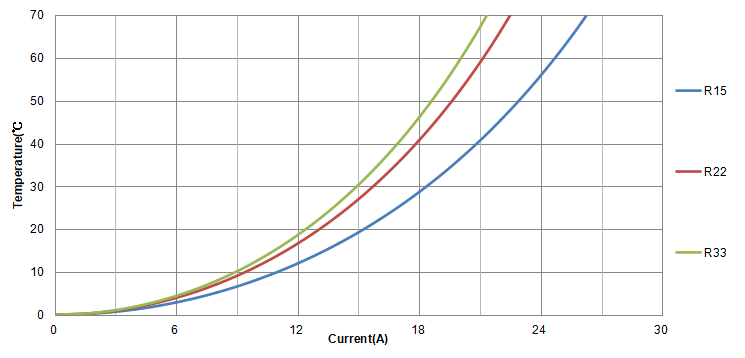

CSAB107050-R33M | 0.33 | 1.00 | 16.50 | 50.00 | 11.50 | 7.20 | 4.80 |
CSAB107050-R22M | 0.22 | 0.90 | 17.00 | 55.00 | 11.50 | 7.20 | 4.80 |
CSAB107050-R15M | 0.15 | 0.70 | 18.00 | 60.00 | 11.50 | 7.20 | 4.80 |
Environment requirement
CSAB107050/CSAB128050 series molding power choke features Halogen-free, RoHS/REACH compliant.
Production status
As with all CODACA parts, CSAB107050/CSAB128050 series has been in mass production. For more information or samples, please contact us or use CODACA online design tool for easy sorting out matching part numbers as well as inductor loss estimation.
