September 2021, Shenzhen-CODACA, the global leading high current power inductor manufacturer has developed a new high current power inductor for digital amplifier CPD3119 series, and it's available from Digi-Key's online marketplace. This series features with small profile, high power, low radiation, and low distortion characteristics. It has been applied to various class D high-power power amplifiers.

Mn-Zn Ferrite Core and Oxygen-free Copper Achieve High Performance

CPD3119 series are designed with manganese zinc ferrite core with wide temperature, high frequency, and low loss. The EP shape magnetic core with excellent magnetic shielded ability to reduce electromagnetic interference.

The coil is wound with oxygen-free copper enameled flat wire, with excellent conductivity and high-speed signal transmission ability, which will not cause distortion at the output of the amplifier.

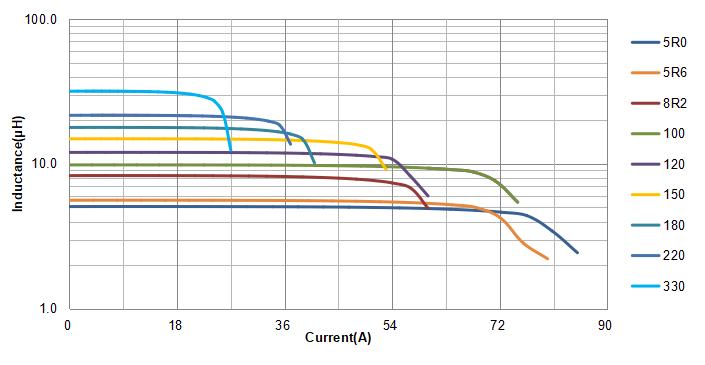

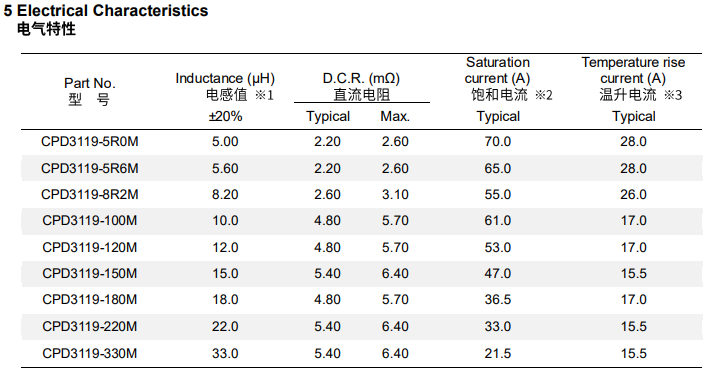

The compact design is suitable for various small volume and high-efficiency designs. It’s featuring an expanded inductance range, including 9 inductance values from 5μH to 33μH, saturation current ranges from 22.5 to 70Amps.

Applications:

CPD3119 series digital power amplifier inductors are widely used in Class D audio amplifiers. CPD3119-220M has been applied for Infineon’s EVAL_AUDAMP24 evaluation board. The samples are available at Digikey’s on line marketplace.

Environment Standard

High current power inductor for digital amplifier CPD3119 series features RoHS, REACH-compliant, Halogen-Free.

Production statue

As with all CODACA parts, CPD3119 series fixed inductor has been in mass production.

For more information or samples, please contact us or use CODACA online design tool for easy sorting out matching part numbers as well as inductor loss estimation.

CPD3119 series：CPD3119.pdf
