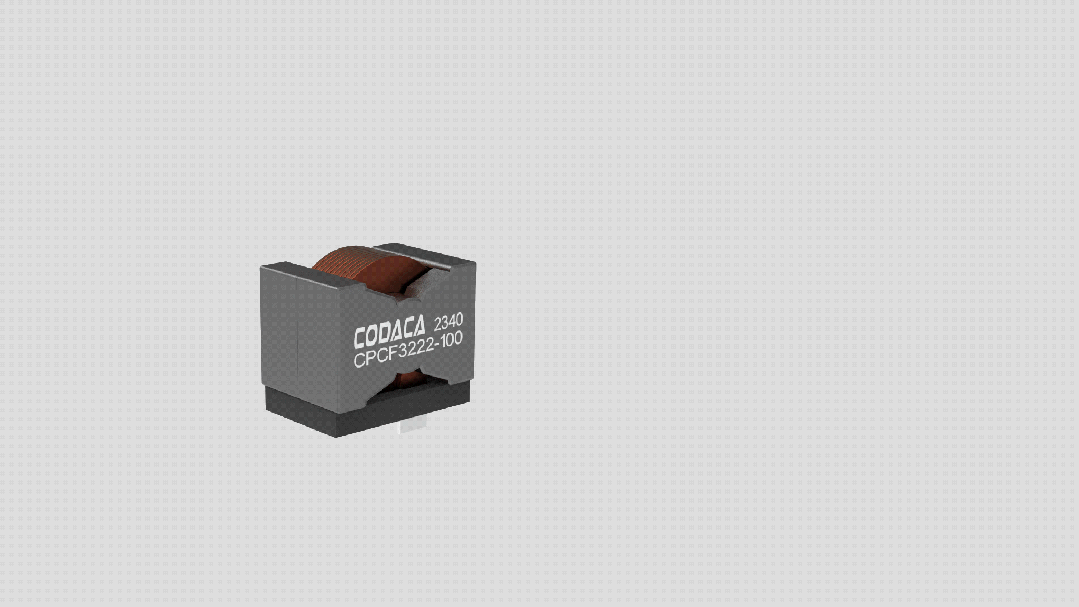

CODACA has released the CPCF series of super-high-current power inductors, including CPCF3222 and CPCF3535. This series uses low power loss ferrite core materials with good current stability in high-frequency and high-temperature environments. Moreover, the saturation current is less affected by temperature and flat wire winding design, resulting in low DC resistance and temperature rise.
![CPCF3222 and CPCF3535 Series High Current Power Inductors High Current Power Inductors](https://0.rc.xiniu.com/g5/M00/15/3E/CgAGbGX7o3SAY-0PACAw2udJCKY200.gif)
CPCF series optimizes the ratio between magnetic core volume, surface area, and coil winding area, resulting in a more compact design that allows the power inductor to achieve maximum output power in a smaller package and occupies the smaller PCB space.
The CPCF3222 and CPCF3535 series are through-hole super high current power inductors widely used in high-power designs such as DC-DC converters and energy storage power supplies, helping to improve the conversion efficiency of DC-DC converters effectively. CODACA can also quickly customize inductors of different sizes, materials, inductance, and electrical performance according to the special design needs of customers.
![CPCF3222 and CPCF3535 Series High Current Power Inductors CPCF3222 and CPCF3535 Series High Current Power Inductors](https://0.rc.xiniu.com/g5/M00/15/3E/CgAGbGX7pC6AdcPiAABTKtqOJIE358.png)

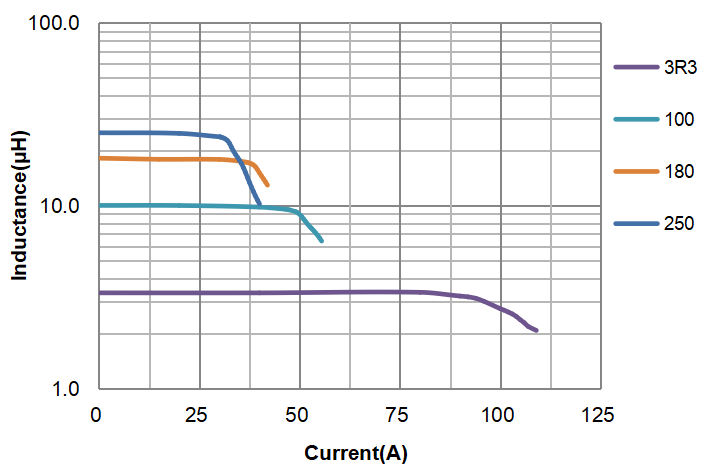

CPCF3222 Series Saturation Current
![CPCF3222 and CPCF3535 Series High Current Power Inductors CPCF3222 and CPCF3535 Series High Current Power Inductors](https://0.rc.xiniu.com/g5/M00/15/3E/CgAGbGX7pC6AG_H2AACki-jgBX8746.png)

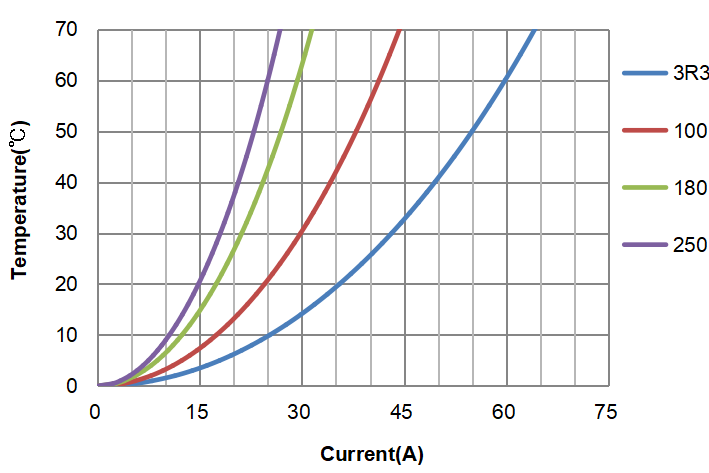

CPCF3222 Series Temperature Rise Current Curve
![CPCF3222 and CPCF3535 Series High Current Power Inductors CPCF3222 and CPCF3535 Series High Current Power Inductors](https://0.rc.xiniu.com/g5/M00/15/3E/CgAGbGX7pheAAD2LAABjgOdULJ4803.png)

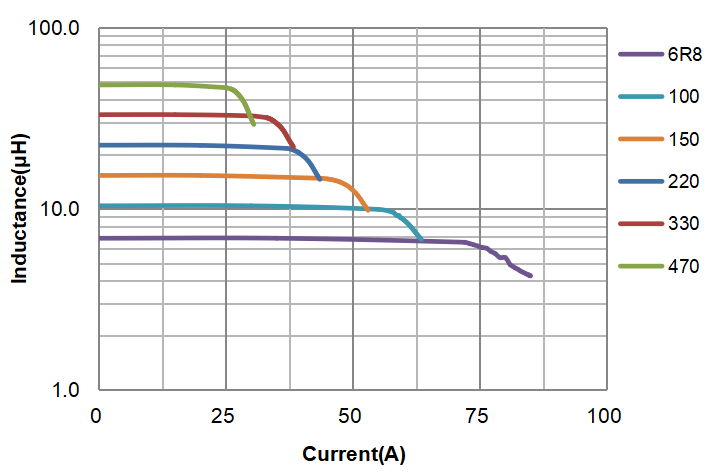

CPCF3535 Series Saturation Current
![CPCF3222 and CPCF3535 Series High Current Power Inductors CPCF3222 and CPCF3535 Series High Current Power Inductors](https://0.rc.xiniu.com/g5/M00/15/3E/CgAGbGX7phiAHzyrAAC1SIfm9OE581.png)

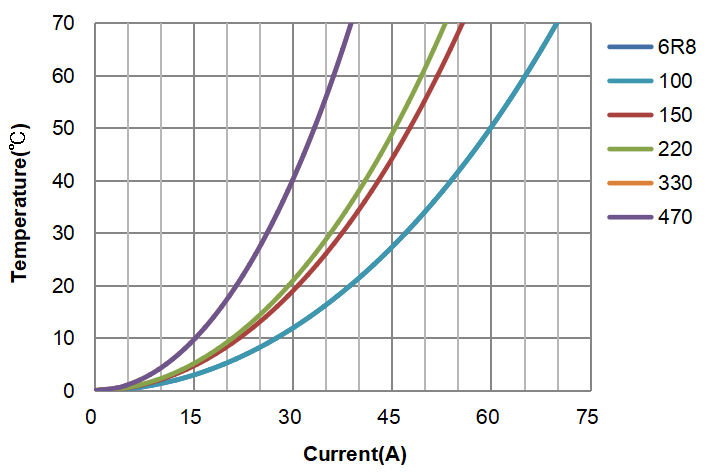

CPCF3535 Series Temperature Rise Current Curve
Features
● Flat wire winding, low resistance, and low temperature rise
● Wide temperature and low magnetic core loss
● Excellent DC bias characteristics
● Magnetic shielding structure reduces EMI
● Working temperature: -40°C ~ +125°C
Applications
● Storage inductor for high-efficiency DC/DC converters
● High-current power supplies
● Battery chargers
● Solar inverters
CPCF3222 Series:
CPCF3222.pdf
CPCF3535 Series:
CPCF3535.pdf
