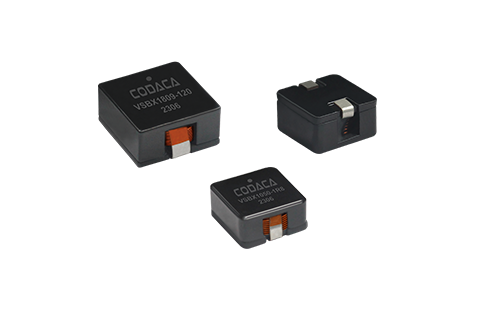

CODACA Electronic launched the compact automotive-grade high-current power inductors VSBX series. The VSBX Series qualified AEC-Q200 Grade 0 (-55°C to +155°C), making it ideal for DC-DC converters, automotive lights, LED drivers, automotive BMS systems, motor control systems and so on.
VSBX series adopts high Bs core material and flat coil design with excellent DC bias capability, outstanding anti-saturation capability, and 20-30% lower DCR compared to the same size power inductors. VSBX series Effectively reduces the DC loss of power inductors and improves conversion efficiency.

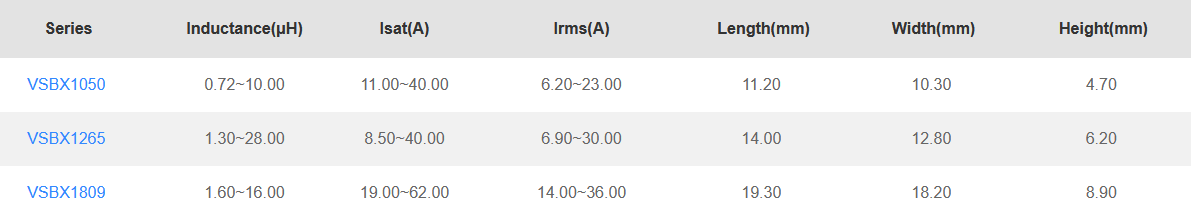

The inductance value of VSBX series ranges from 0.72~28.00 μH, DCR range from 1.00~22.5mΩ, saturation current from 8.50~62.00A, temperature rise current from 6.20~36.00A.VSBX series have 3 sizes, from 11.20*10.70*5.00mm to 19.30*18.70*9.30mm.
Features
● Flat wire winding, achieve a low DC resistance.
● Low loss, high efficiency, wide application frequency and application scope.
● Lightweight design, save space, suitable for high density SMT.
● Magnetic-shielded structures reduce EMI.
● AEC-Q200 Grade 0 (-55°C to +155°C).
Applications
● LED lighting, DC/DC converters.
● Car BMS/Car electric/motor controller.
● High-current power supplies.
● Input/output filters.
Environmental Protection Standard
The products comply with RoHS, REACH and halogen-free.
Production Status
As with all CODACA parts,VSBX series inductor has been in mass production and samples are available to clients after inquiry.
