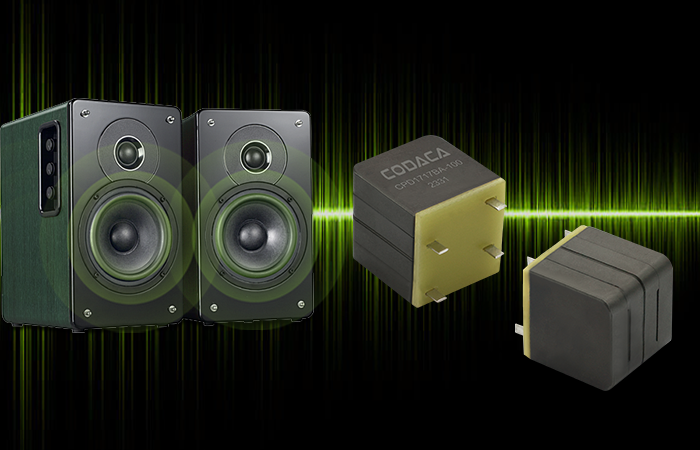

CODACA’s CPD1717BA series two-in-one power inductors provide power amplifiers with higher current and filtering functions. They can filter out the noise from the amplified voice signals to get the purified sound for Class-D amplifiers. The CPD1717BA series achieves higher energy utilization and minimized power loss with the high efficiency of Class-D technology. They can better meet the requirements of most electronic devices for high power and efficiency. They combine two power inductors into one component, making the design of the inductor more simplified and compact to save PCB space and achieve maximum efficiency.

The CPD1717BA series inductors are wound with oxygen-free copper wire to achieve low distortion and high sound quality. They can be used in various power amplifier applications, including audio amplifiers, radio transmitters, power supplies, and others. The compact design and high efficiency make them an ideal choice for electronic devices.

Features

● Magnetic shielded structure, two inductors in one package

● Low coupling for minimal cross-talk between inductors
● Realized low distortion and high sound quality
● Low-loss core material and oxygen-free copper (OFC) wire

● Operating temperature: -40°C to +125°C

Application
● Hi-Fi amplifiers
● AV receivers
● Home theater systems
● Powered speakers
● Musical instrument amplifiers
● Digital power amplifiers
● Audio

● Power supplie

CPD1717BA series：CPD1717BA.pdf
